CobaDGS - Zero Emission Solution
CobaDGS - Zero Emission Solution

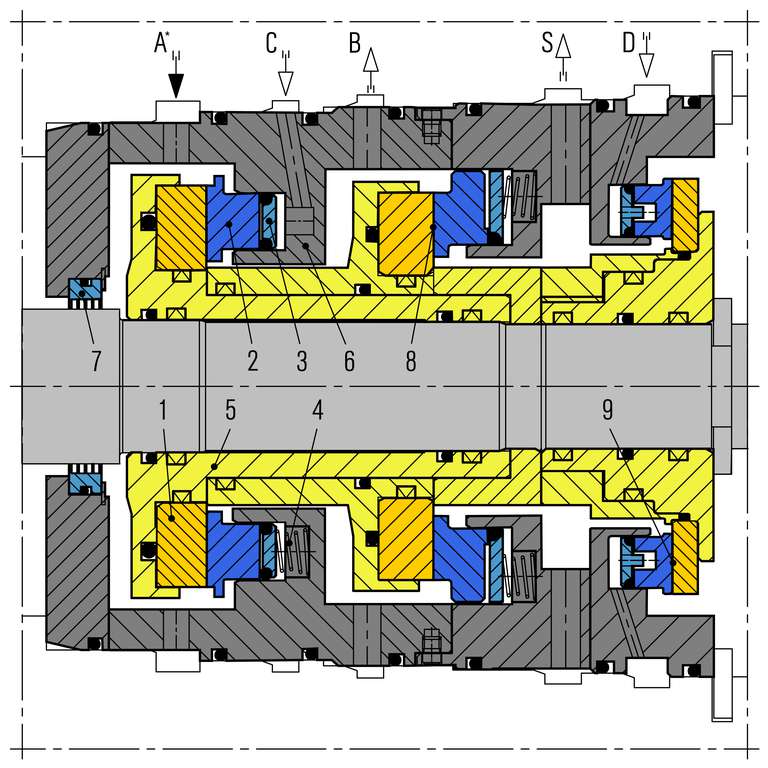

CobaDGS drawing
A* Buffer gas supply - optional
B Primary vent
C Seal gas supply
D Separation gas supply
S Secondary vent
| Item | Description |
| 1 | (Seat) Rotating seal face |
| 2 | (Seal face) Stationary seal face |
| 3 | Thrust ring |
| 4 | Spring |
| 5 | Shaft sleeve |
| 6 | Housing |
| 7 | Labyrinth |
| 8 | DGS as seal on atmoshere side |
| 9 | CobaSeal as separation seal |
S Secondary vent
CobaDGS - Zero Emission Solution
Features
The sealing solution for reduction of methane-/ process gas emissions
- Gas-lubricated
- Bi-directional
- Ready-to-fit cartridge unit
- Available for following seal arrangements: single and tandem
- Co-axial primary seal
- Separation seals as CobaSeal, carbon rings or labyrinths optional
Advantages
- No methane-/ process gas emissions
- Supplied with clean nitrogen (no dew point and dirt problems)
- Robust
- Offers higher safety than a double seal
- Upgrade-possibility of existing single, double and tandem seals
- No modification of the compressor necessary
- Efficient alternative to hermetically sealed systems
- For compressors with gas- and steam turbines, as well as with electric drive
Materials
Stationary seal face: Silicon carbide with DLC-coating, DiamondFace-coating optional
Rotating seal face (Seat): Silicon carbide with DLC-coating, DiamondFace-coating optional
Secondary seals: FKM or other elastomers, depending on product gas composition
Metal parts: 1.4006 or other stainless steels
Other materials on request.
Dimensions on request
Rotating seal face (Seat): Silicon carbide with DLC-coating, DiamondFace-coating optional
Secondary seals: FKM or other elastomers, depending on product gas composition
Metal parts: 1.4006 or other stainless steels
Other materials on request.
Dimensions on request
Standards and approvals
- NACE
- API 692
Recommended applications
- Pipelines
- Gas storages
- Oil and gas industry
- Chemical industry
- Power plants
- Centrifugal compressors
- Turbo expander
- Turbines
- Pumps
- Blower
- LNG
- CCUS
- Hydrogen
- Alternative fuels production
- Power generation
Notes
Notes/Info Methane Emissions*
Methane is the second largest contributor to climate change after CO2. Methane is emitted in smaller quantities than CO2, but it’s warming potential is 80 times higher. Behind agriculture, the energy industry is the largest emitter of methane emissions.
A convincing argument for action
According to the International Energy Agency around 40-50% of current methane emissions from the oil & gas industry could be avoided at negative or at no net cost. This means that many projects to avoid methane emissions even have a positive business case and pay back in a relatively short time because the gas can be sold instead. If all these possible projects would be realized the impact on climate change would be immensely positive.
CobaDGS eliminates
The CobaDGS is the first dry gas seal, which provides the possibility to seal compressors with zero methane emissions even if they have high working pressures. It is a viable and sustainable option for upgrading existing compressors or can be installed in new compressors.
*Source:
International Energy Agency
https://www.iea.org/weo/methane/
Product variants
Optionally available

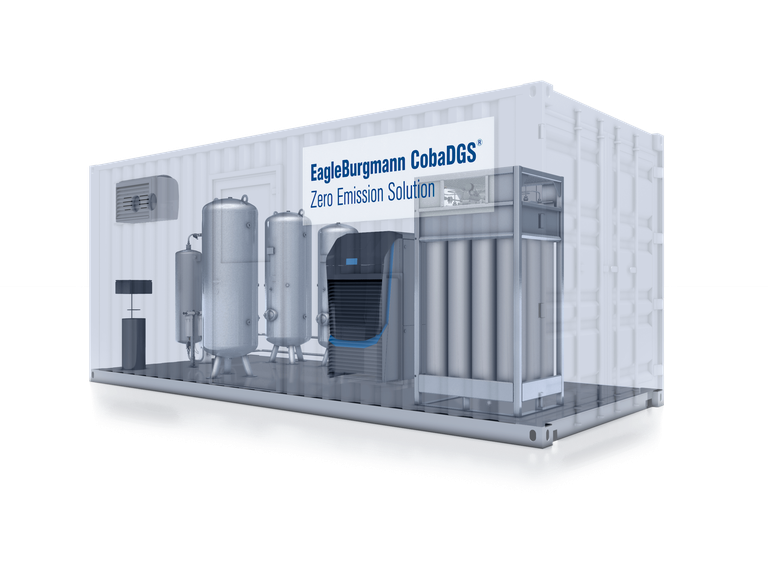

High pressure nitrogen generator
- On-site generation of nitrogen
- Ensures continuous, uninterrupted nitrogen supply
- Solves the logistics problem, especially for sites in remote, hard-to-reach areas. No more hassle transporting the nitrogen.
Nitrogen generation is based on pressure swing adsorption. Storage at 330 bar – for intermittent generation/compression and back-up supply – then reduction to the required pressure.
The complete nitrogen production and supply system comes in a container which should be installed out of ATEX area.
Required power supply: Heavy current, 400V, 50Hz/60Hz, 3 Ph
Similar products
DGS
- Gas-lubricated
- Uni-directional or bi-directional
- Ready-to-fit cartridge unit
- Single, double, tandem and tandem with intermediate labyrinth available
- Separation seals as labyrinths, carbon rings or CobaSeal are optionally available
MDGS
- Gas-lubricated
- Bi-directional
- Compact, radial design
- Ready-to-fit cartridge unit, also available as a component seal
- Single, double, tandem seal and tandem with intermediate labyrinth available
PDGS
- Gas-lubricated
- Uni-directional or bi-directional
- Elastomer-free
- Ready-to-fit cartridge unit
- Single, double, tandem seal and tandem with intermediate labyrinth available
- Separation seals as labyrinths, carbon rings or CobaSeal are optionally available
